German BMW Fit Models F18/F15 Intake Manifold 13718626487

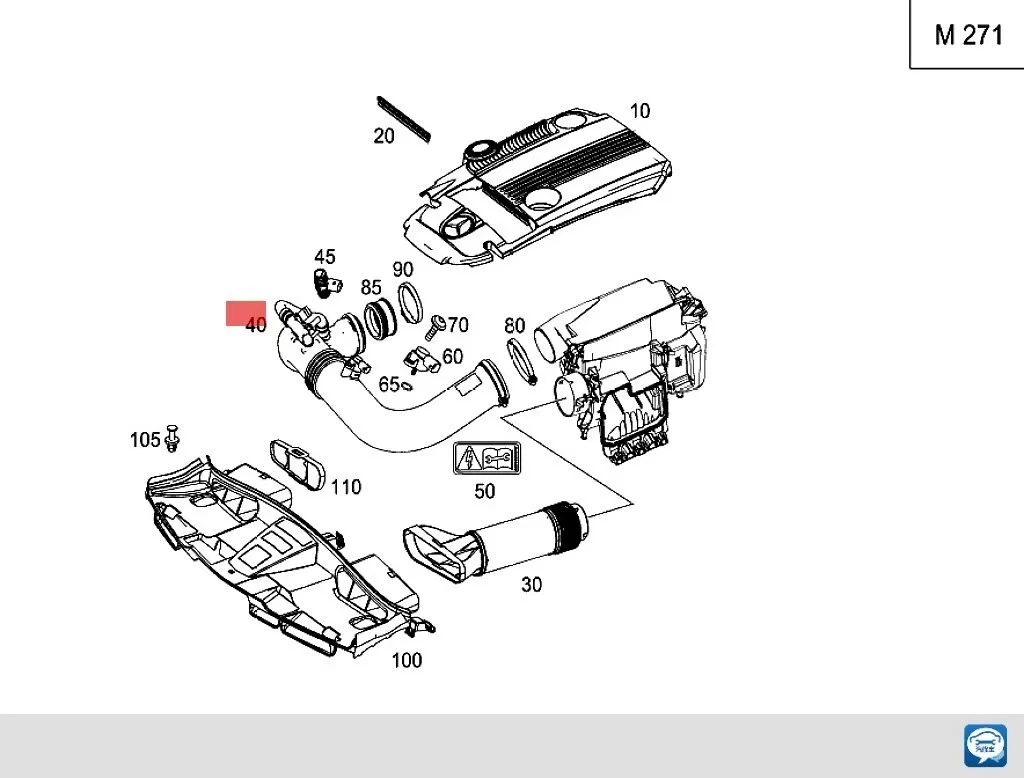

For the question of the location of the Mercedes-Benz engine air intake, the air intake is located in the engine compartment. After opening the hood of the car, you will find that the air filter is located in the position of the car's air intake; intake pipe is the general intake pipeline, intake manifold will be the air distribution to the cylinders, the gas through the carburetor will be atomized gasoline, along with the air into the cylinders!

The intake pipe is the key component of the engine intake system, responsible for introducing air from the air filter into the engine cylinders, mainly composed of intake pipe, intake manifold and injector nozzle.

Structure and Function

The intake pipe introduces air into the engine through the air filter after filtering, and the intake manifold distributes the air to each cylinder. Gasoline engines usually use a vertical intake design to improve high-rpm performance, while diesel engines tend to use a gyratory intake to enhance the efficiency of the mixture at low rpm.

Shape and type

There are two types of intake ducts:

Vertical intake duct: simple structure, low resistance, suitable for high-revving engine design (e.g., BMW M5's V10 engine), which facilitates the arrangement of fuel injectors close to the intake valves;

Swing intake duct Swing inlet: Enhance the mixing of air and fuel through eddy current, suitable for low speed conditions (such as diesel engines).

Design points need to ensure sufficient flow area, avoid sudden changes in cross-section, and optimize the surface finish to reduce intake resistance. Gasoline engines often use linear intake systems, taking into account airway throttling and pressure regulating chamber volume design to improve performance.
