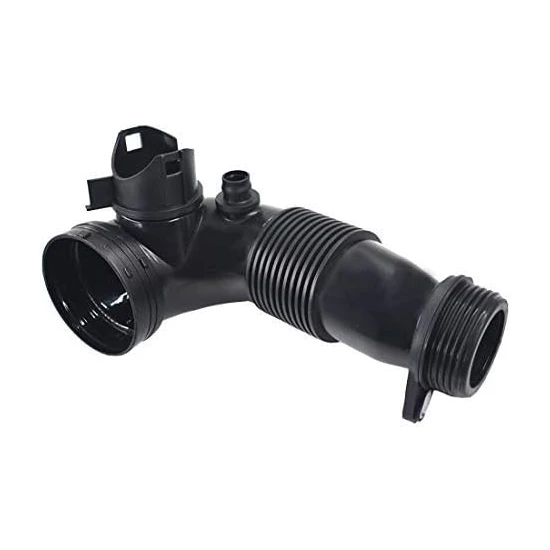

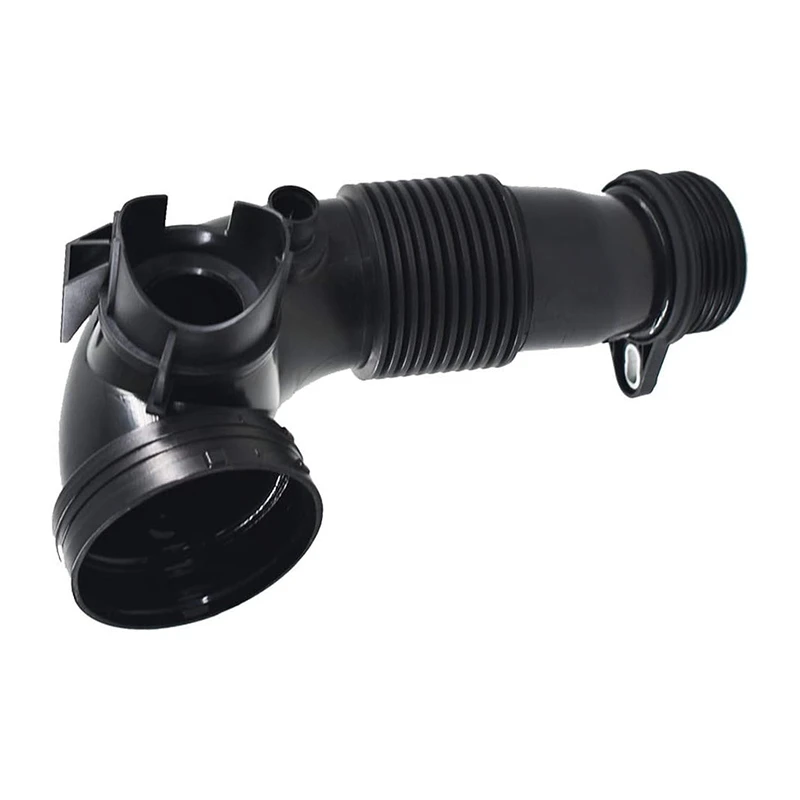

BMW Turbo Pipe OE Code No. 11538663516 Comprehensive Analysis
I. Material and Design Characteristics
★ Core Structure
BMW turbocharger hose OE code No. 11538663517 is designed with multi-layer high-temperature resistant silicone + steel wire braid, and some of the interfaces are made of aluminum alloy die-castings, which can withstand the high-temperature and high-pressure environments of the turbocharger (operating temperatures ranging from -40°C to 200℃).
The supercharger pipe of N20 engine is integrated with oil inlet pipe, oil return pipe and coolant pipe OE code No. 11537583902, which is connected to the turbocharger through O-ring sealing, and some of the improved models have added metal limiting clips to reduce the risk of dislodgement. Some improved models add metal limit clamps to reduce the risk of dislodgement.
★ Adaptability difference
The interface specifications of the supercharger pipe are strictly differentiated between different models, for example:
N20 engine (for 3 Series/5 Series/X1, etc.) turbocharger pipe number 11537583903;
B48 engine (suitable for new 3 series/X3) adopts integrated coolant circulation line design.
Ⅱ. The common faults and maintenance programs
★ Failure phenomenon Cause analysis Solution
Coolant leakage Gasket aging or interface deformation Replacement of improved high-temperature-resistant gasket (need to simultaneously replace the turbine end of the four sealing rings).
Insufficient boost pressure Air leakage due to cracked pipes or loose clips Replace the original boost pipe and check the connection status of the intercooler.
Cold start blue smoke Failure of oil return pipe sealing Upgrade improved oil return pipe with check valve.
Ⅲ. Maintenance Cost and Cycle Time
★ Cost Comparison
4S store repair: replace the turbocharger pipe + gasket cost about 3500-5000 yuan (including labor cost);
Third-party specialized repair store: the repair cost can be reduced to 2000-3500 RMB by using original parts, or 1000-1500 RMB if only replacing the gasket.
★ Warranty Policy
The warranty period for the original turbocharger pipe OE code number 11427585403 is 3 years or 100,000 kilometers (whichever comes first), and the modification parts need to be confirmed according to the supplier's terms and conditions.
Ⅳ. Maintenance Recommendations
★ Preventive inspection
Every 20,000 kilometers, check the piping interface for oil/water stains, focusing on the area below the turbocharger (leakage fluid is easy to accumulate);
Long-term parking vehicles need to start the engine regularly to avoid deformation of the gasket due to long-term pressure.
★ Upgrade Program
High-frequency failure models (such as the old 5 Series) are recommended to replace the metal threaded connector supercharger pipe, which improves the anti-aging performance by 50%;
Track modified vehicles can use double-layer steel wire braid + Viton coated reinforced piping, temperature resistance increased to 250 ℃.
V. Accessory Selection Reference
★ Types of accessories Recommended models Adaptable models
Turbo inlet pipe 11427585402 X5/X6/F15/F16 etc.
N20 engine coolant pipe Improved gasket set 3 series/5 series/X1/X3 etc.
Oil return pipe (with check valve) Genuine upgraded version for N20/B48 engines.
(Note: Repairs involving turbo disassembly require simultaneous replacement of exhaust manifold gaskets to avoid secondary leakage.)
