Steering Fuel Line OE No. LR026229 Comprehensive Analysis
I. Function and Role

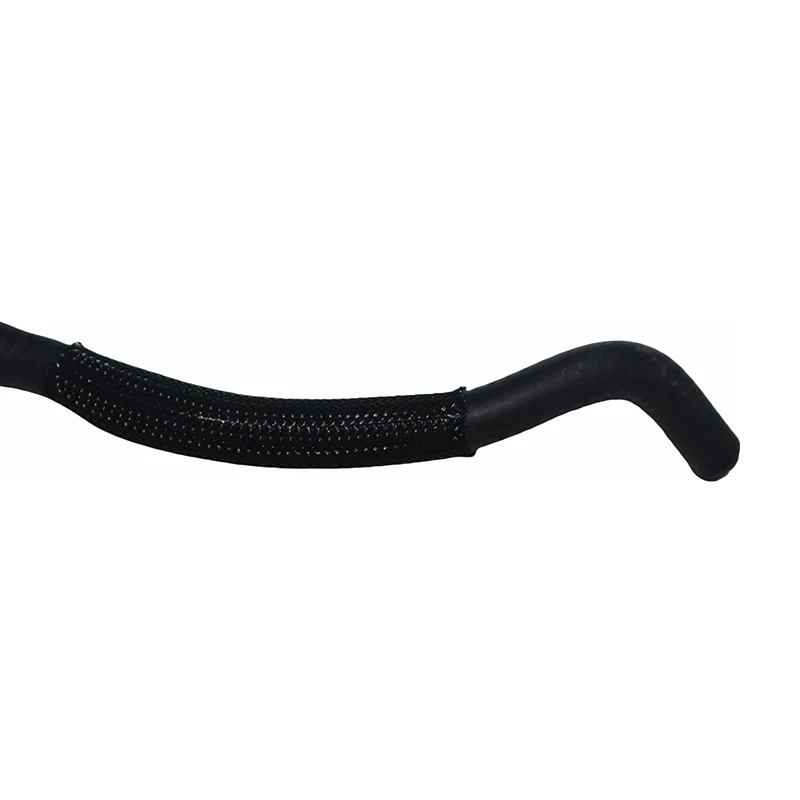

Steering oil tube LR011940 is the core component of automobile power steering system, responsible for transmitting power steering fluid, providing hydraulic power for steering wheel operation, and reducing the steering burden of the driver. Its working condition directly affects the sensitivity and safety of the steering system.
Ⅱ. The distinction between the oil inlet pipe and the oil return pipe
★ Location Difference
Fuel inlet pipe: usually located above the injector nozzle, connecting the fuel cartridge and booster pump, responsible for delivering the filtered fuel to the steering system.
Fuel return pipe: located below the injector nozzle, extending from the inside of the steering wheel, responsible for recycling the used fuel to the fuel pump or fuel tank.
★ Pipe Diameter Comparison
The fuel inlet pipe has a thicker diameter and the fuel return pipe is relatively thin (recognizable to the naked eye).
★ Function Verification
After starting the vehicle, use pliers to lightly clamp the hose portion of the oil pipe, if the engine stalls after clamping then it is the oil inlet pipe (as it is directly related to the oil pump pressure).
III. Replacement and Maintenance
★ Replacement steps
Lift the vehicle and remove the front wheel and steering column bolts;
Drain the old fluid, remove the oil return pipe and oil supply pipe, and replace the new oil pipe and gasket;
Reassemble and check the sealing to ensure no leakage.
★ Replacement interval
It is recommended that the power steering fluid be replaced every 40,000-50,000 kilometers or 2-3 years to avoid contamination of the fluid leading to steering lag or rattling.
★ Cost Reference
Replacement cost varies greatly depending on the model and region, generally between 100-300 RMB.
★ Points for Purchase
Ⅳ. Material Selection
Steel/stainless steel tube: high pressure resistant, corrosion resistant, suitable for high power models;
Rubber/nylon tube: good flexibility, suitable for low-pressure oil return pipeline or parts that require heat dissipation.
★ Specification matching
Need to choose the inner diameter, outer diameter and wall thickness according to the needs of the model to ensure that the flow and pressure to match.
★ Environment
Stainless steel is preferred for high-temperature or corrosive environment; cold-resistant rubber hose is available for low-temperature environment.
V. Common Problems
Oil pipe leakage: mostly due to aging gasket or broken oil pipe, need to be replaced in time to avoid power failure.
Steering noise: may be due to insufficient fluid or clogged tubing, need to check the fluid status and clean up the piping.
For further operational guidance or troubleshooting, it is recommended to combine with the specific model parameters or consult professional maintenance personnel.
