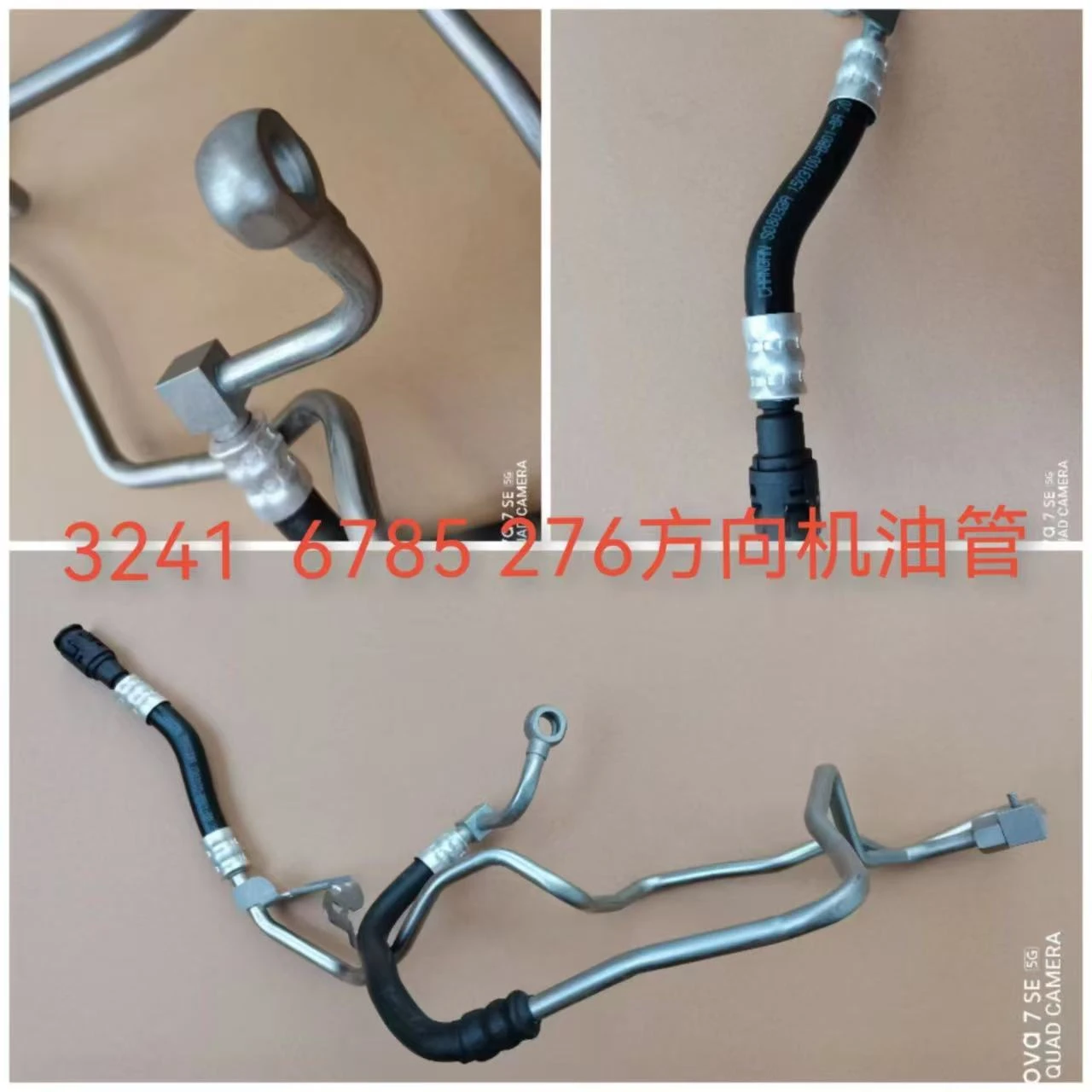

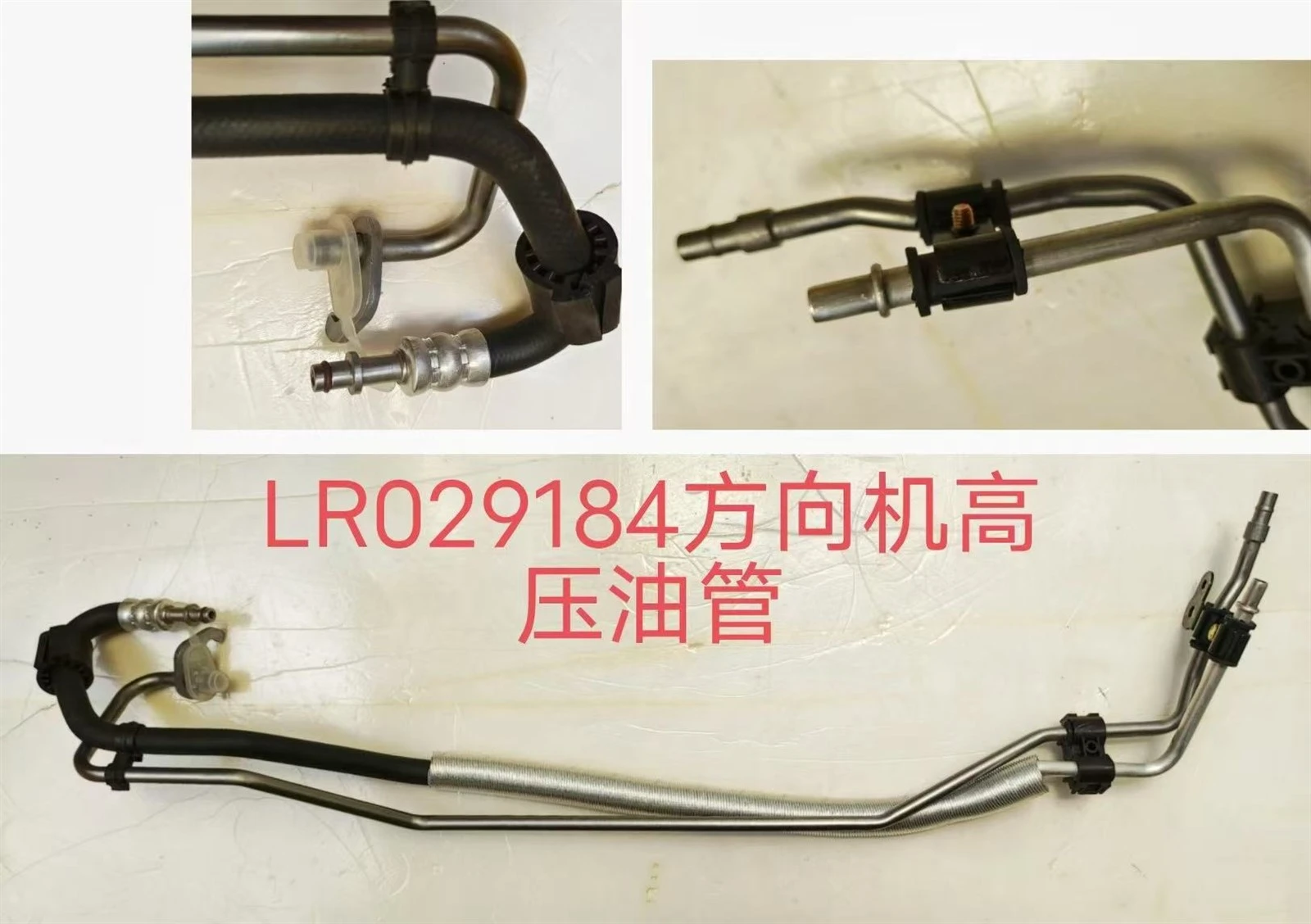

Steering oil pipe Description
Steering oil pipe is a very important part inside the automobile piping parts, which is very high require for the production equipment and inspection equipment.
Technical parameters and warranty time of the steering oil hose
Working Pressure
+
-
o Low Pressure Hose: working pressure ≤10MPa, applicable to oil return line.
o High-pressure hose: working pressure 45MPa~60MPa (varying with model and steering system design), e.g., the pipeline from steering pump to steering gear needs to withstand more than 15MPa pressure.
Oil resistance
+
-
Immersion test: In the steering fluid (such as ATF Dexron III, DOT 4, etc.), immersed in 120 ℃ for 72 hours, the pipe does not dissolve, cracking, and the strength decreases ≤ 10%.
Temperature range
+
-
Conventional working conditions: -40℃~120℃ (short-term can withstand 150℃), need to maintain flexibility at low temperatures (e.g. - 40℃ bending without cracks).
Aging and corrosion resistance
+
-
Ozone test: 48 hours exposure under 50ppm ozone concentration, no surface cracking; salt spray test (GB/T 10125) ≥1000 hours without corrosion.
Warranty time
+
-
two years from the date of installation under correct installation and normal working environment.
