First, the product structure.
The structure of steel wire braided hose is composed of liquid-resistant synthetic rubber inner rubber layer, middle rubber layer, Ⅰ or Ⅱ or Ⅲ layer of steel wire braided reinforcing layer, and weather-resistant synthetic rubber outer rubber layer with excellent performance.
Second, the product use:
Steel wire reinforced hydraulic rubber hose is mainly used for mine hydraulic support, oilfield mining, suitable for engineering and construction, lifting and transportation, metallurgy, forging, mining equipment, ships, plastic injection molding machinery, agricultural machinery, machine tools, as well as various industrial sectors of mechanization, automation of the hydraulic system conveying with a certain pressure and temperature of petroleum-based (such as mineral oil, soluble oils, hydraulic oils, fuels, lubricating oils) liquids, water-based liquids (such as emulsions, oil-water emulsions). Such as emulsion, oil-water emulsion, water), gas, etc. and liquid transmission.
Note: The enterprise steel wire braided hose with reference to GB/T3683-1992 standard design and production, and according to the requirements of ISO/DIS1436-1985, DIN20022 and SAE100RIAT, SAE100R2AT standard design and production.
SAE100R2AT standard hose, this standard is not suitable for castor oil-based and fat-based liquids.
Third, the working temperature: oil -40 ° C - +100 ° C, air -30 ° C - +50 ° C, water emulsion +80 ° C or less, beyond the use of the factory's special products!
Fourth, product features:
1. The hose is made of special synthetic rubber with excellent oil, heat and aging resistance.
2. The hose has high bearing pressure and superior pulse performance.
3. The hose body is tightly combined, soft and small deformation under pressure.
4. The hose has excellent resistance to bending and fatigue.
5. The length of the steel wire braided hose is large, φ32 or more than 20 meters, φ25 or less can be connected to ten meters or even more than a hundred meters.

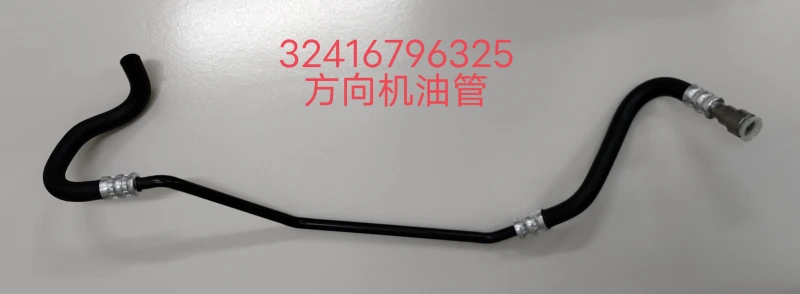

The high-pressure hose assemblies produced by our company are all made of high-quality steel wire braided hose or steel wire wound hose and hose couplings, which are buckled and pressed by special equipment.
According to the needs of users can choose high-quality carbon steel fittings, stainless steel fittings, copper fittings, aluminum fittings, etc., the form of fittings and threads with strict reference to the national standard metric system, American standard, British standard, etc.
American standard, British standard, etc., accurate data, reasonable structure, easy to assemble, buckling tight, high temperature, high pressure and pulse.
Under high temperature, high pressure and pulse working condition, there is no leakage of liquid, no head off, high safety coefficient, long service life, and according to the user's needs, design and production of shaped fittings and connectors.
